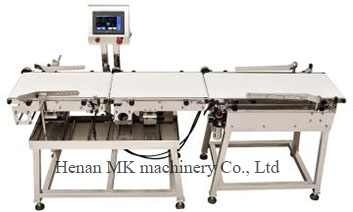

Application:
It is suitable to check weight of various product, over or less weight will be rejected out, qualify bags will be passed to next equipment.
Features:
7" Kinco touch screen and main board control system, more stability and easier to operate.
Use HBM load cell to ensure high accuracy and stability.
Solid SUS304 structure to ensure stable performance and precise weighing.
Reject arm, air blast or pneumatic pusher for selecting.
Belt disassembling without tools, which is easier to clean.
Install emergency switch at the size of machine.
Technical specifications:
Control System: 7" Kinco HMI, mother board control system
Weighing range: 10-3000 grams
Speed: 30-100bags/min
Accuracy: +1.5 grams
Product Size: 10<L<370mm; 10<W<300 mm
Mini Scale: 0.1 grams
Weigh Belt: 570L*320W mm
Reject system: Reject Arm/Air Blast/ Pneumatic Pusher
Power supply: 220V/50HZ Single Phase 0.3KW 1.5A
Dimension: 1450L*1370W*1330H mm
Gross Weight: 250kg
